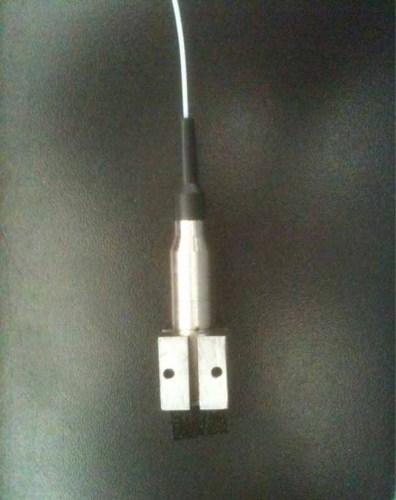

635 nm 400mW Coaxial Packaged Multimode Fiber Laser Diode

Payment Terms: T/T
Place of Origin: Beijing, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: PM-635-M-400-F
Means of Transport: Air

Wavelength: 635 nm
Maximum output power: 400mW

 Wavelength: 635 nm
Optical fiber type: 200µm MM optical fiber (optional)
Maximum output power: 400 mW
Optical fiber connector: ST/FC/SMA905
Applications: Medical use; Biochemical analysis
Optical Data
Tolerance of λ: ± 5 nm
Spectral Width (FWHM): <3nm
Wavelength stability coefficient: ~0.2 nm/Degrees
Fiber Data
Numerical aperture: 0.22
Connector type: ST/FC/SMA905
Electrical Data
Operating current: 700mA
Threshold current: 170mA
Conversion efficiency: 13%
Slope efficiency: 1.1 mW/mA
Operating voltage: 2.4V
Others
Operating temperature: +10~+50 Degrees
Storage Temperature: -20~+80 Degrees
Lifetime: >10000h
